Provides filtered and regulated voltage output to power electric strikes, magnetic locks,or other access control devices. Output is selectable in the field for 12 or 24 VDC.Charging circuit is built in for battery backup power (batteries not included)with 12 or 24 VDC operation. LED on circuit board indicates power input.
UL 294 listed, UL listed

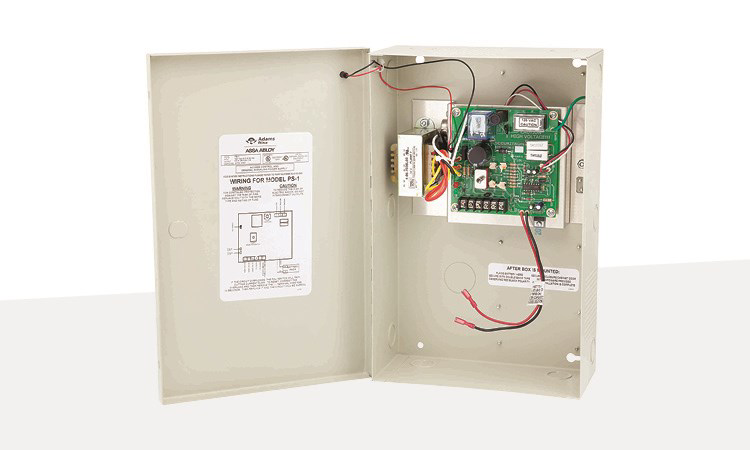

Housing: Hinged, steel cabinet measures 12-1/8” x 4” x12-1/8” [308 mm x 101.6 mm x 308 mm]. Beige, baked enamel finish with knockouts for conduitand key lock. Sized to accommodate twosealed, lead acid batteries (4AH, not included).
Fire Alarm: UL listed low current fire alarm disconnect requires only a minimumsize fire alarm relay and wire gauge.
Shipping weight: 12 lbs [5.4 kg]
Input Power: 110 VAC, 60 Hz, 0.5A
Battery Fuse: 2A, 5 x 20MM
Primary Fuse: 800 mA, 5 x 20MM
Output Voltage: Field-selectable 1 Amp @ 12VDC or24VDC. (Maximum 13.8 VDC/27.6 VDC)
Related Products: when purchasing this product, please consider the following related products, available separately:
| Accessories | Power |
| Batteries not included. | 4612 Power Transfer Device |
Compatible Products: This product is compatible with the following products:
| Deadlatches | Electric Strikes | Exit Devices | Trim |
| 4300 Electrified Deadlatch | 7100/7101, 7110/7111, 7130/7131, 7140 Series |
8700 Series, 8800 Series Rim Exit Devices with EL option |
|
